STOmics> Products>STOmics Solutions>Stereo-seq Solutions
Solution Overview Product Highlight Key features Demo Data Workflow Stereo-seq Kit Solution
Solution Overview

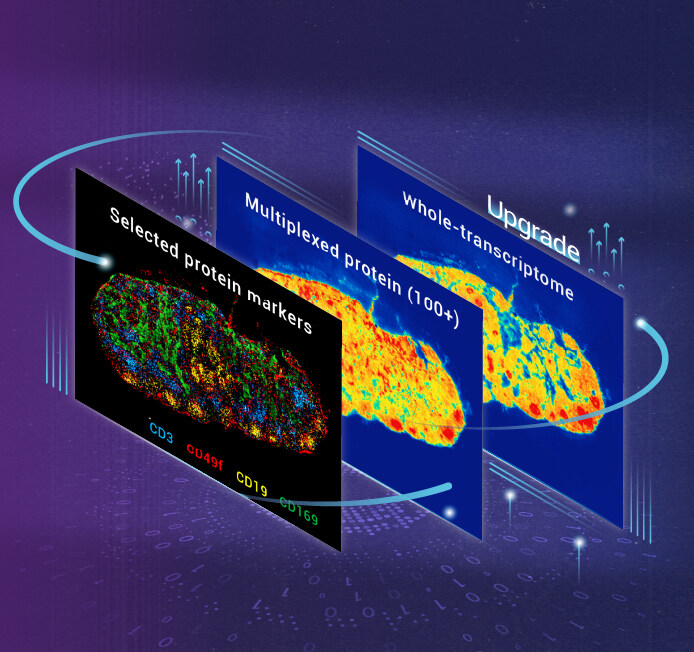

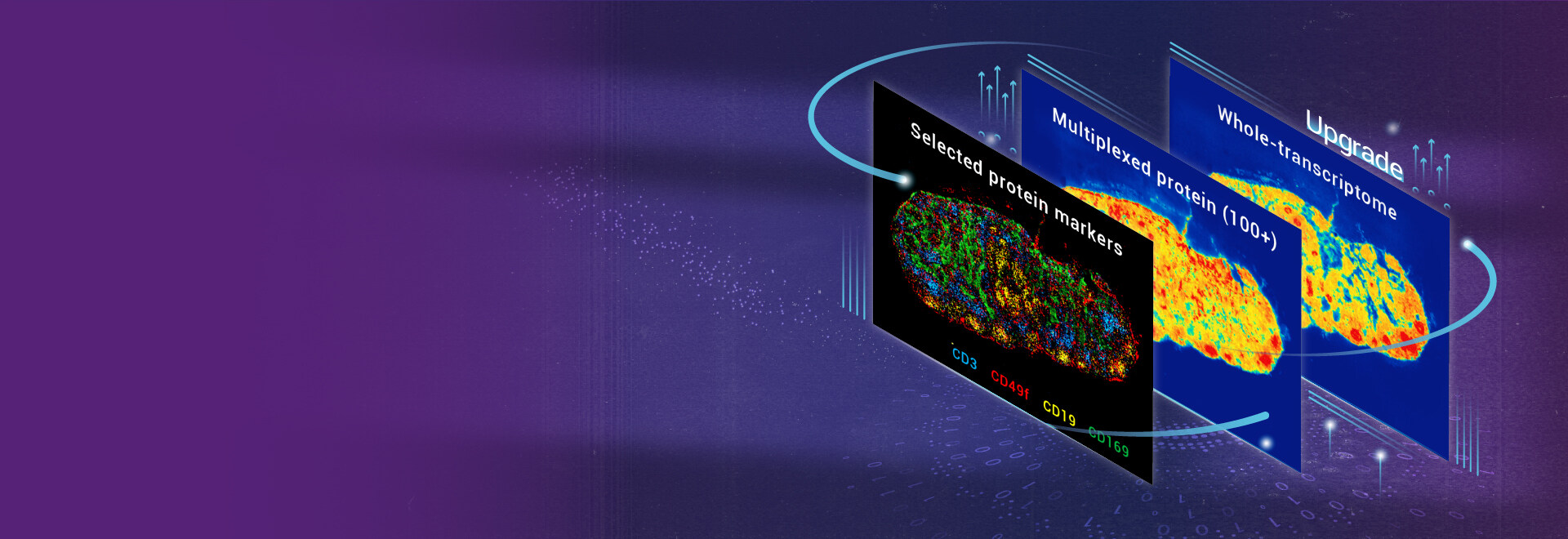

Combining whole transcriptomics, protein detection, and tissue morphological information on the same tissue section allows for in-depth spatial multi-omics discovery. Stereo-seq v1.3 mIF solution enables spatial visualization of multiple proteins in single-cell resolution on top of the unbiased whole transcriptome information on the same tissue section. Without affecting mRNA capturing, the additional detected protein information can be integrated with gene expression data for in-depth evaluation of valuable samples, and to parse complex pathological and physiological processes.
Solution Overview
Product Highlight
Offer flexibility in choosing antibodies based on your research needs and project design
Deliver single-cell resolution results across different species enabling more robust and translatable scientific discoveries

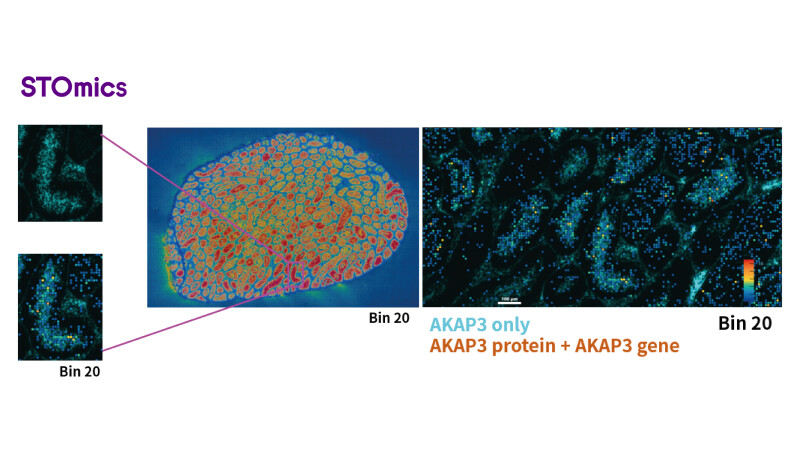

Detect up to 4 protein biomarkers, provide unbiased high-resolution whole transcriptomics information and assess RNA and protein spatial distributions in cells on the same fresh frozen tissue
STOmics upgraded bioinformatic pipeline
Improved workflow and upgraded bioinformatic pipeline providing a user-friendly experience
Demo Data

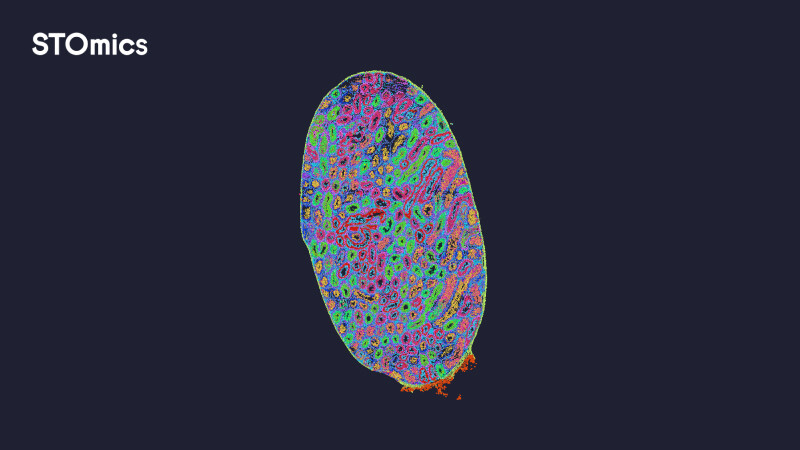

STOmics Mouse testis demo data
Mouse testis
  • Tissue area: 17.06 mm²

  • Total reads: 406,753,020

  • Valid CID Read: 314,138,027

  • Median gene type count: 541 (bin20)

  • Cell count:198,248

  • Total transcriptome: 211,038,433

  • Median MID count per cell: 410

  • Median gene type count per cell: 349

  • Chip size: 1 cm x 1 cm

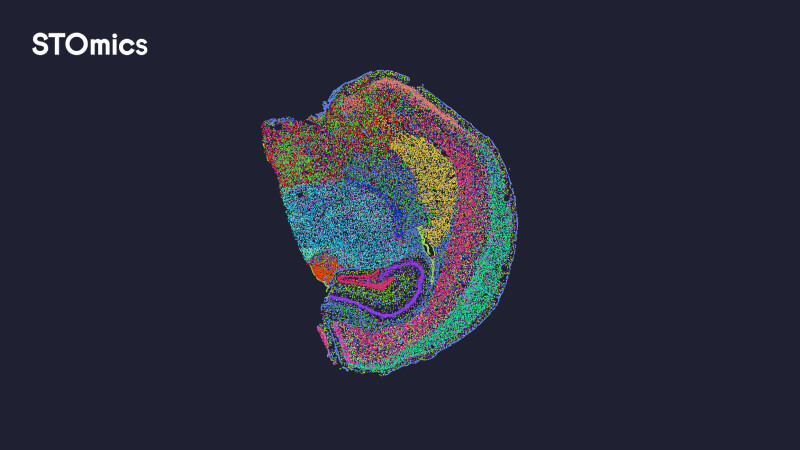

STOmics Mouse brain demo data
Mouse brain
  • Tissue area: 27.95 mm²

  • Total reads: 1.75 G

  • Valid CID Read: 1,267,486,138

  • Median gene type count: 282

  • Cell count:70,035

  • Total transcriptome: 708.29 M

  • Median MID count per cell: 1,133

  • Median gene type count per cell: 732

  • Chip size: 1 cm x 1 cm

Workflow

Sample Preparation
Stain and image
mRNA Capture & cDNA Synthesis
Library Construction
Sequencing
Data analysis & visualization
Stain and image
Carry out tissue fixation and conduct multiplex immunofluorescence(mIF) staining using customized or pre-designed antibody panel to visualize the tissue under epi-fluorescence microscopes. An upright microscope is recommended for optimal image generation.


mRNA Capture & cDNA Synthesis
To extract mRNA from fresh frozen tissue, the tissue undergoes permeabilization. This process enables mRNA to bind to DNB-patterned array chips (Stereo-seq Chip T) that are preloaded with spatially-barcoded probes designed to capture and prime poly-adenylated mRNA from the tissue. Each cDNA synthesized at a specific spot (500nm resolution) is attached to its spatially barcoded probe, enabling the subsequent mapping of gene expression within a tissue section after sequencing.


Library Construction
Construct a whole-transcriptome library by amplifying and purifying the cDNA products obtained from the Stereo-seq Transcriptomics for mIF application workflow.


Data analysis & visualization
Run your sequencing data on the Stereo-seq Analysis Workflow (SAW), which involves Linux command line-based pipelines, to map the sequenced reads back to their spatial locations on the tissue section, and then interactively display the results on StereoMap visualization software, a Windows/MacOS compatible desktop application.


Perform Stereo-seq in your own laboratory with Stereo-seq Kit Solutions

Product Number

Product

Specification

211SP11118

Stereo-seq Permeabilization Set for Chip-on-a-slide V1.1

8 RXN

211KP11118

Stereo-seq Permeabilization Kit

8 RXN

210CP118

Stereo-seq Chip P Slide (1cm*1cm)

8 EA

1000033700

STOmics Accessory Kit

5 PCS

211ST13114

Stereo-seq Transcriptomics Set for Chip-on-a-slide V1.3

4 RXN

211KT13114

Stereo-seq Transcriptomics T Kit

4 RXN

210CT13114

Stereo-seq Chip T Slide (1cm*1cm)

4 EA

1000033700

STOmics Accessory Kit

5 PCS

111KL160

Stereo-seq 16 Barcode Library Preparation Kit

16 RXN

301AUX001

Stereo-seq PCR Adaptor

2 EA
